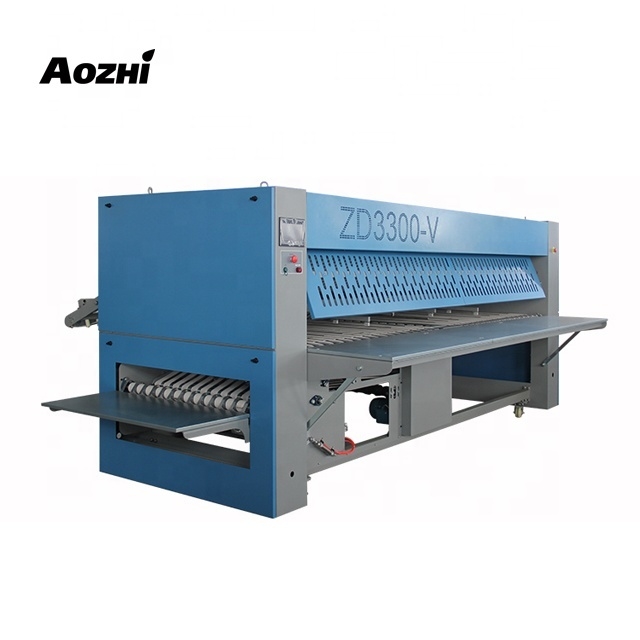

AOZHI Most Popular Automatic Commercial Laundry Equipment Bedsheet Folding Machine

Large Image : AOZHI Most Popular Automatic Commercial Laundry Equipment Bedsheet Folding Machine

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	AOZHI
Certification:	ISO9001 ,CE

Contact Now

Detailed Product Description

Warranty:	1 Year	Power:	2.2Kw
Weight:	1600kg	Size:	420028001760mm
Product Name:	Bed Sheet Folding Machine	Heating:	Electric Heating
Voltage:	220,380,400,415,440V	Machine Type:	Industrial Use
Function:	Make Sheet Smooth	Material:	Stainless Steel 304
Installation:	Freestanding	After Service:	Long Life
After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts

Product Description

Industrial Laundry Folding Machine

1. Using automatic folding technology combined with air blowing and knife gate.
2. Free programming of the number of vertical and horizontal disassembly of the full Chinese computer man-machine dialogue interface.
3. With self-diagnosis function, single-link signal detection technology and perfect protection and protection system.
4. With the speed control and accurate positioning of the linen conveying system, it can accurately measure the length of the cloth and calculate the folded length.
5. The adjustable speed of the frequency converter can be matched with various types of ironing machines. The linkage operation of the ironing machine and the folding machine can be implemented.
6. Highly intelligent PLC and touch screen, high reliability, long life, and intuitive troubleshooting methods and operation.
7. Adopt intelligent infrared inspection system. Measure the actual movement speed of the fabric to improve the folding accuracy.
8. Anti-static function, completely solve the problems of linen rolling and wrinkling; improve the folding quality, and increase the reliability and stability of the machine.
9. Higher folding success rate and better folding accuracy and flatness. Meet the high requirements of any high-star hotel for folding accuracy and flatness.
10. It can fold 4 pillowcases at the same time, increasing the work efficiency by more than 4 times.
11. It can be used with stacking machine. Reduce labor intensity and improve work efficiency.

Model		ZD3300-V
Max Ironing L*W	mm	3300 x 3000
Max Speed	m/min	50
Layers	Layer	1-5
Air Pressure	mpa	0.7
Rated Input Power	kw	1.87
Depth	mm	4000
Width	mm	2300
Height	mm	2000
N.W	Kg	2200

Detailed Images

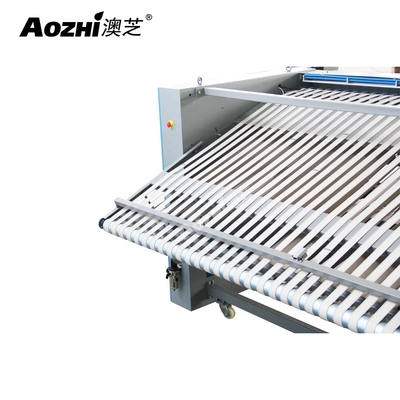

Machine Details

Anti-static function, completely solve the problems of linen rolling and wrinkling; improve the folding quality, and increase the
reliability and stability of the machine.

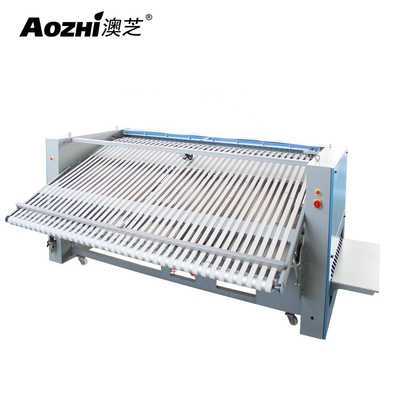

Main Features

Higher folding success rate and better folding accuracy and flatness. Meet the high requirements of any high-star hotel for folding accuracy and flatness.
and It can fold 4 pillowcases at the same time, increasing the work efficiency by more than 4 times.

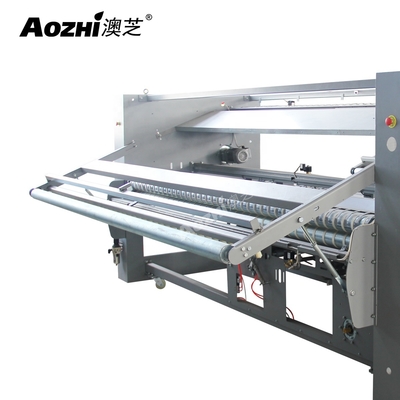

Folding Machine used with ironing machine

Free programming of the number of vertical and horizontal disassembly of the full Chinese computer man-machine dialogue interface.
With self-diagnosis function, single-link signal detection technology and perfect protection and protection system.

Main Features

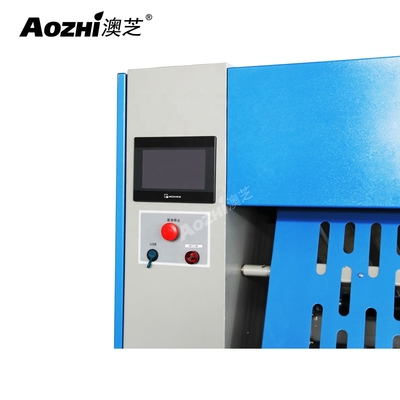

Highly intelligent PLC and touch screen, high reliability, long life, and intuitive troubleshooting methods and operation.
Adopt intelligent infrared inspection system. Measure the actual movement speed of the fabric to improve the folding accuracy.
