Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas

Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas

Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas
Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas

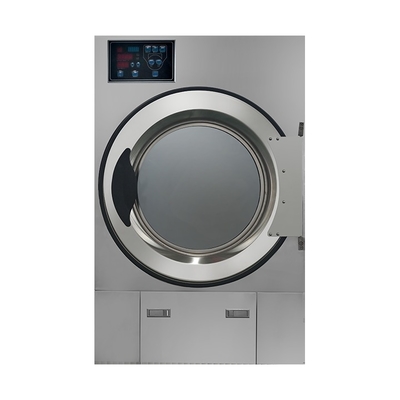

Large Image :  Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas

Product Details:
Place of Origin: Shanghai, China
Brand Name: AoZhi
Detailed Product Description
Production Capacity: 100 Warranty: 1 Year
Dimension(l*w*h): 840*1150*1560 Power(w): 0.55+0.37
Voltage: 380V, 220V, 110V Weight (kg): 260
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: Motor, Engine Drying Capacity: 15 Kg
Heating Method: Electric Heating/Steam Heating/Gas Heating Drum Size: 780*600 Mm
Electric Heating Power: 15 KW Steam Pressure: 0.4-0.6 Mpa
Steam Consumption: 22 H/kg Air Outlet Diameter: 180 Mm
Size: 840*1150*1560 Mm

Product Description

Product Application
1. We are professional leading original equipment manufacturer in China. Our products are not only elegant, but also durable and our price is very competitive.
2. The model, size, color and other details of our products can be customized. You can tell us your requirements and we will give you some advice and try our best to satisfy your needs.
3. If you want to cooperate with us, you can pay field visit to our factory and we can provide you with free training. True gold does not fear fire.
4. We can provide you with some free parts with our products. When our product breaks down during normal operation under warranty period, we can deliver some parts to you for free and send you videos to teach you how to repair it.


HG-15
HG-25
HG-35
XGQ-50
XGQ-70
drying Capacity
15kg
25kg
30kg
50kg
70kg
Heating method
Electric/Steam/Gas


523L
712L
Drum Size
780*600 mm
980*640 mm
980*950 mm
1150*980 mm
1340*1070 mm
motor
0.55+0.37 KW
0.75*2 KW
1.1*2 KW
1.1+1.5 KW
2.2+1.5*2 KW
Electric Heating
15 KW
20 KW
30 KW
40 KW
50 KW
rated voltage
AC110/220/380/415/440/50-60Hz
5.5KW
7.5KW
steam pressure
0.4-0.6 Mpa
7.5KW
11KW
steam consumption
22 H/kg
35 H/kg
50 H/kg
70 H/kg
100 H/kg
Air outlet diameter
180 mm
210 mm
210 mm
240 mm
270 mm
size
840*1150*1560mm
1070*1170*1770mm
1070*1450*1770mm
1250*1500*1980mm
1400*1700*2070mm
weight
260 kg
400 kg
450 kg
550 kg
770 kg
Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas 0

Main Features

Drying machines (dryers, clothes dryers, clothing dryers) can be used for drying cotton, wool, linen, and synthetic fibers such as clothing, linen, and fur. There are three different drying methods available: electric heating, steam heating, and gas heating.
1. By using an automatic control device and adjusting the time through the control panel, the entire drying process is automatically completed;
2. The rotary cylinder is made of stainless steel, with a beautiful and smooth body and no scratches on the fabric;
3. The dryer features a large open door design, making it easy for the door to open 180 degrees freely and for easy clothing retrieval;
4. Adopting triangular tape transmission, smooth operation and low noise;
5. Adopting a large spacing wind blade fan, the plush is not easily clogged, and the drawer type plush collector makes it easy to clean the plush;
6. There are three different drying methods available for the dryer: electric heating, steam heating, and gas heating.

Certifications
Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas 2
Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas 4
Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas 6
Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas 8
Our Service
Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas 10

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas 12

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Industrial Dryer Series - High-Efficiency, Multi-Fuel Options Electric/Steam/Gas 14
Packaging
Size
940 (L) * 1250 (W) * 1660 (H) mm
Weight
310kg



Packaging Details
Syntheic board
Wood pallet
