Advanced Single Roll Ironer Safety Features with Finger Guards & Emergency Stop Switch Seamless Fabric Feeding Ironing Machine

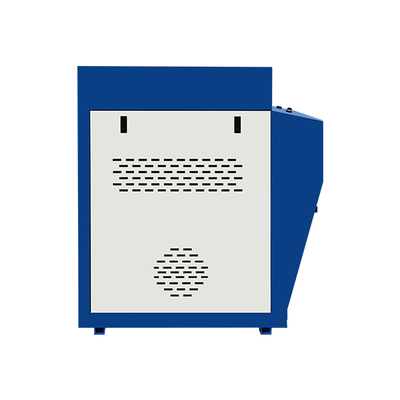

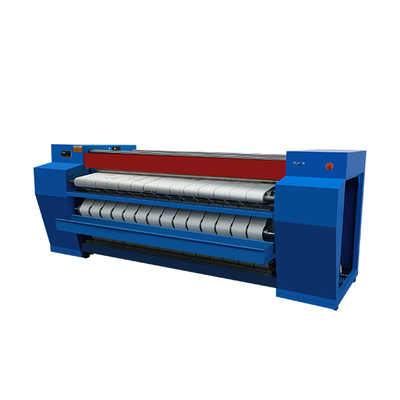

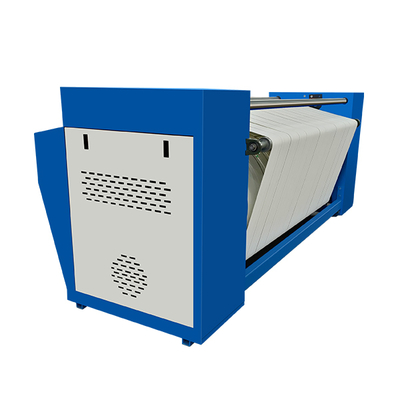

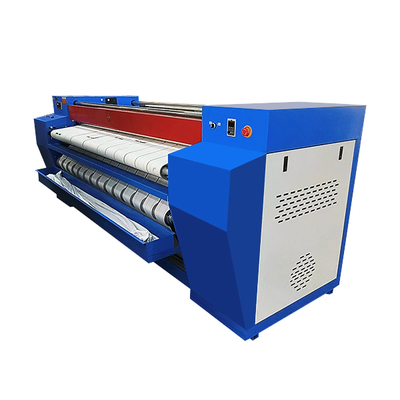

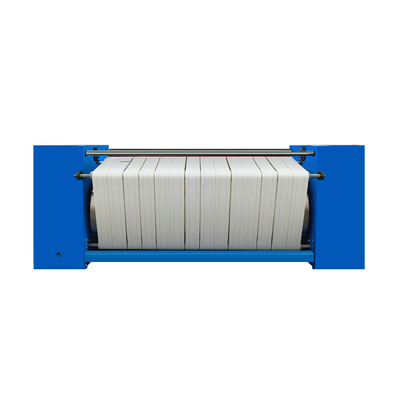

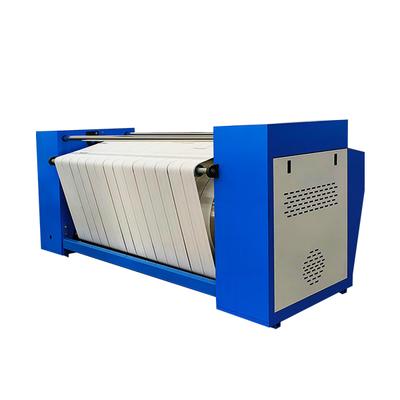

Large Image : Advanced Single Roll Ironer Safety Features with Finger Guards & Emergency Stop Switch Seamless Fabric Feeding Ironing Machine

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	AoZhi

Contact Now

Detailed Product Description

Production Capacity:	100	Warranty:	1 Year
Dimension(lwh):	444813301420 Mm	Power(w):	1.1
Voltage:	380V	Weight (kg):	1800
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Bearing	Number Of Rollers:	1 Roll
Drum Diameter:	800 Mm	Maximum Ironing Width:	3300 Mm
Ironing Speed:	1-10 M/min	Steam Heating Consumption:	110 Kg/h
Steam Pressure:	0.3-0.5 Mpa

Main features

The fully automatic folding machine is widely used in various industries such as hotels, restaurants, hospital guesthouses, military units, schools, textiles, washing factories, dyeing factories, printing and dyeing, silk, clothing, railway and aviation laundry factories, etc. It is suitable for folding fabrics such as bed sheets, duvet covers, tablecloths, thread blankets, etc.

★ Solid material, beautiful and practical 304 stainless steel roller, with durable and corrosion-resistant channel steel frame;
★ Complete 5 folds under computer monitoring, and the number of vertical and horizontal folds can be freely edited according to the fabric amplitude and thickness;
★ Equipped with self diagnostic function, comprehensive safety protection system, and self maintenance function for detection points;
★ The variable frequency motor and variable speed transmission structure adopt a combination of pulleys and sprockets, with high load-bearing capacity and buffering capability;
★ Equipped with dual channel folding function, it can double the ironing and folding ability of small linens and reduce energy consumption.

Specifications	unit	YP-8030I	YP-8033I	YP-8030II	YP-8033II	YP-8030III	YP-8033III
Number of drums	roll	1	1	2	2	3	3
Drum diameter	mm	800	800	800	800	800	800
Maximum ironing width	mm	3000	3300	3000	3300	3000	3300
Ironing speed	m/min	1-10	1-10	3-20	3-20	6-24	6-24
Steam heating consumption	kg/h	100	110	200	220	300	330
Steam pressure	Mpa	0.3-0.5
Electric heating power	kw	36	36	72	72	108	108
power supply	w/p/hz	380/3/50
Motor power	kw	1.1	1.1	1.5	1.5	2.2	2.2
width	mm	4148	4448	4148	4448	4148	4448
deepth	mm	1330	1330	2280	2280	3200	3200
height	mm	1420	1420	1420	1420	1420	1420
weight	kg	1750	1800	3100	3200	4000	4300
