Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction

Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction

Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction
Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction

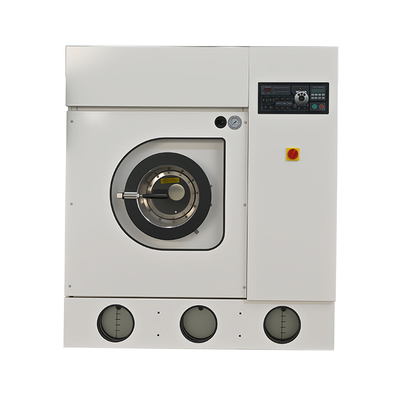

Large Image :  Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction

Product Details:
Place of Origin: Shanghai, China
Brand Name: Aozhi
Detailed Product Description
Production Capacity: 100 Warranty: 1 Year
Dimension(l*w*h): 1850*1360*2150mm Power(w): 3.6KW
Voltage: 380V Weight (kg): 1300
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: Engine Washing Capacity: 20kg
Drum Volume: 415mm Drum Size: 980*550mm
Distilled Box: 408L Speed: 30-600Rpm/min
Rated Voltage: 380V Motor Power: 3.6KW
Liquid Pump Power: 0.55KW Compressed Air Pressure: 0.4-0.6Mpa
Used For: Hotel, College, Laundry Shop, Hospital

Product Description

Product Application
1. We are professional leading original equipment manufacturer in China. Our products are not only elegant, but also durable and our price is very competitive.
2. The model, size, color and other details of our products can be customized. You can tell us your requirements and we will give you some advice and try our best to satisfy your needs.
3. If you want to cooperate with us, you can pay field visit to our factory and we can provide you with free training. True gold does not fear fire.
4. We can provide you with some free parts with our products. When our product breaks down during normal operation under warranty period, we can deliver some parts to you for free and send you videos to teach you how to repair it.


GXZQ-10
GXZQ-12
GXZQ-16
GXZQ-20
Washing Capacity
10kg
12kg
16kg
20kg
Washing volume
185L
220L
320L
415L
Drum size
800*365mm
800*440mm
900*500mm
980*550mm
Distilled box
139L
215L
310L
408L
Speed
30-600Rpm/min
30-600Rpm/min
30-600Rpm/min
30-600Rpm/min
Rated voltage
380/220V
380/220V
380V
380V
Motor power
2.2kw
2.2kw
3.6kw
3.6kw
Liquid pump
0.55kw
0.55kw
0.55kw
0.55kw
Wind turbine
0.75kw
0.75kw
0.75kw
0.75kw
Drying power (electricity)
5.4kw
5.4kw
/
/
Distillation power (electricity)
6kw
6kw
/
/
Steam pressure
0.4Mpa
0.4Mpa
0.4Mpa
0.4Mpa
Compressed air pressure
0.4-0.6Mpa
0.4-0.6Mpa
0.4-0.6Mpa
0.4-0.6Mpa
Size
1700*1200*2150mm
1750*1200*2150mm
1800*1310*2150mm
1850*1360*2150mm
Weight
850kg
900kg
1000kg
1300kg
Product Characteristics

Using highly extractable tetrachloroethylene as a solvent to effectively decompose stains in clothing.Recommended laundry equipment for hotel laundry rooms, dry cleaners, and more.

★ PLC operating system, optional automatic/manual control, real-time monitoring and viewing of washing process;
★ Closed washing and drying, in compliance with environmental requirements for emissions;
★ Leak proof chassis, more in line with European standards; Drying can choose electric heating/steam heating;
★ Low temperature washing, refrigeration recovery, lower energy consumption;
★ Fully galvanized treatment and internal stainless steel structure effectively extend the service life of the machine; Complete galvanizing treatment and internal stainless steel structure can effectively extend the service life of the machine.


Detailed Images

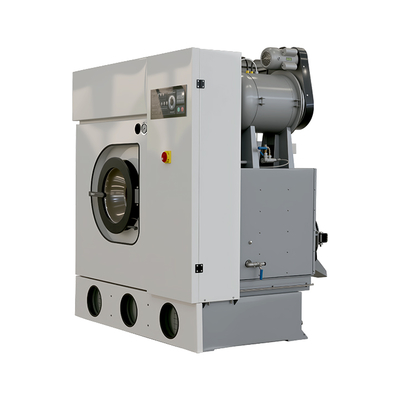

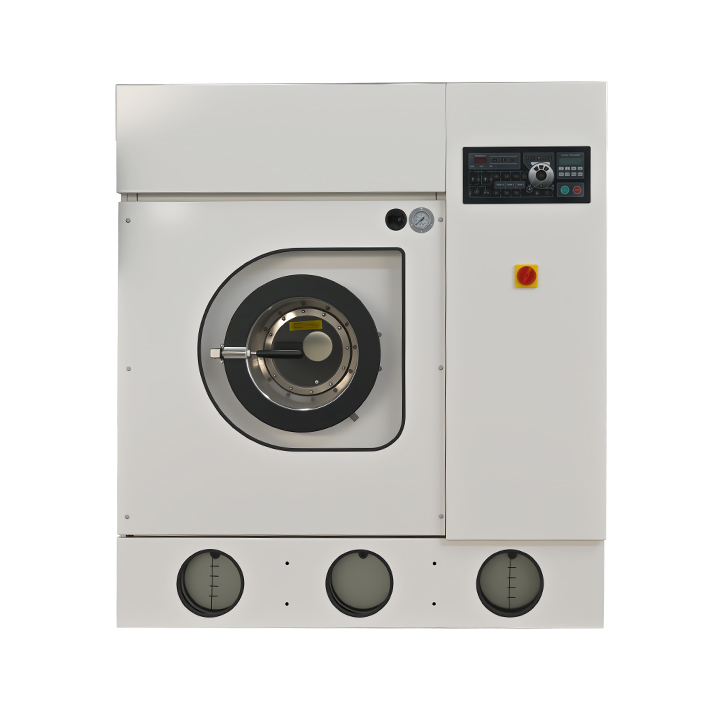

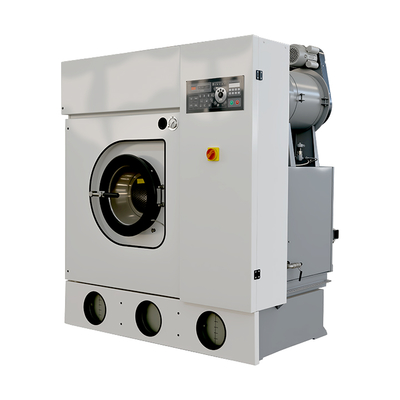

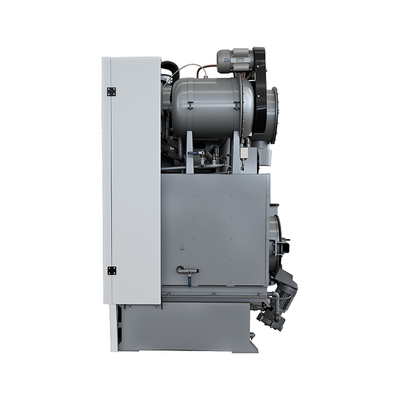

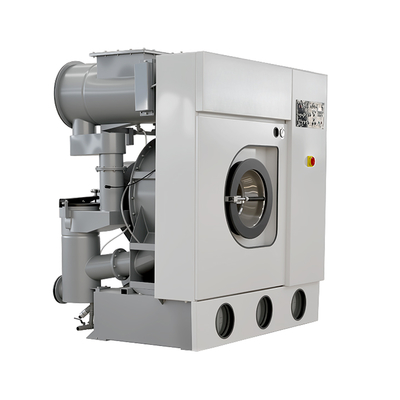

Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction 0
Certifications
Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction 2
Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction 4
Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction 6
Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction 8
Our Service
Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction 10

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction 12

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Low-Waste Sustainable Dry Cleaning System with Stainless Steel Construction 14
Packaging
Size
1950 (W) * 1460 (D) * 2250 (H)
Weight
1350kg



Packaging Details
Syntheic board
Wood pallet
