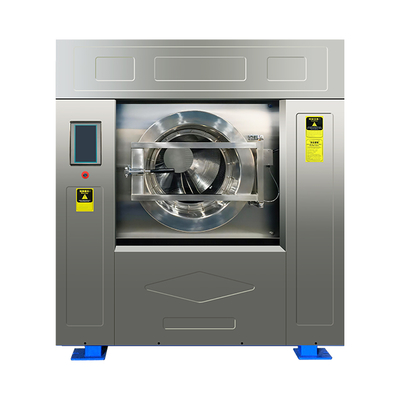

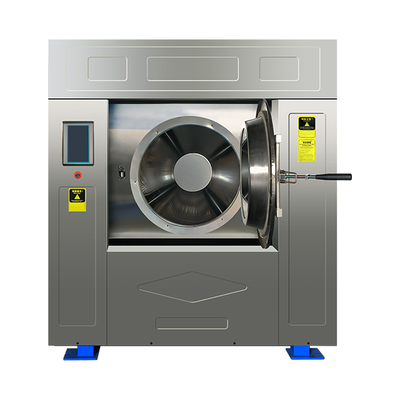

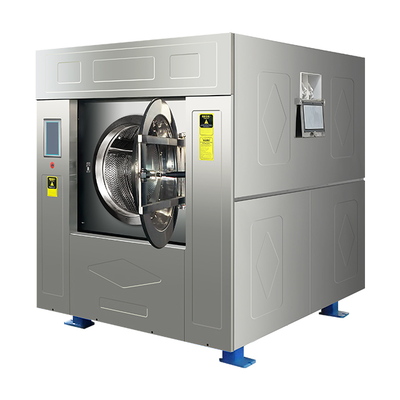

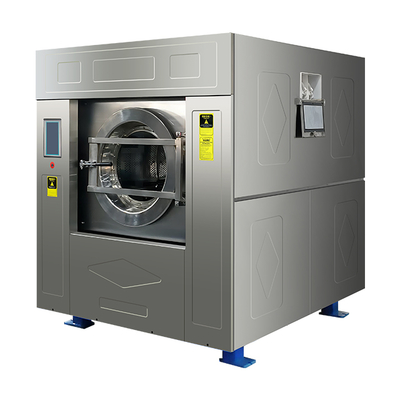

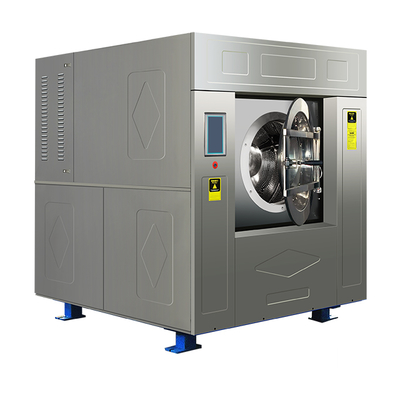

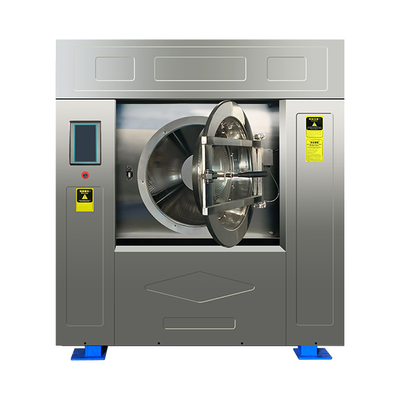

Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment

Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment

Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment
Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment

Large Image :  Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment

Product Details:
Place of Origin: Shanghai, China
Brand Name: AoZhi
Detailed Product Description
Warranty: 1 Year Dimension(l*w*h): 1600*1630*1950 Mm
Power(w): 5.5 KW Voltage: 380V
Weight (kg): 2500 Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: Motor, PLC, Engine
Washing Capacity: 60-80 Kg Drum Volume: 712 L
Drum Size: 1210*610 Mm Running Speed: 36-680 Rpm/min
Inverter Power: 11 KW Electric Heating Power: 36 KW
Steam Pipe Diameter: DN25 Cold/hot Water Pipe Diameter: DN40
Drain Outlet Pipe Diameter: 140 Mm

Product Description

Product Application
1. We are professional leading original equipment manufacturer in China. Our products are not only elegant, but also durable and our price is very competitive.
2. The model, size, color and other details of our products can be customized. You can tell us your requirements and we will give you some advice and try our best to satisfy your needs.
3. If you want to cooperate with us, you can pay field visit to our factory and we can provide you with free training. True gold does not fear fire.
4. We can provide you with some free parts with our products. When our product breaks down during normal operation under warranty period, we can deliver some parts to you for free and send you videos to teach you how to repair it.

XGQ-30
XGQ-50
XGQ-70
Washing Capacity
30-40kg
40-60kg
60-80kg
Drum Volume
305L
523L
712L
Drum Size
900*480 mm
1070*610 mm
1210*610 mm
Running Speed
36-680 Rpm/min
36-680 Rpm/min
36-680 Rpm/min
rated voltage
AC/380/50-60Hz
AC/380/50-60Hz
AC/380/50-60Hz
motor power
4KW
5.5KW
7.5KW
Inverter
5.5KW
7.5KW
11KW
Electric Heating
18KW
36KW
36KW
steam pipe diameter
DN25
DN25
DN25
hot water pipe diameter
DN40
DN40
DN40
Drainage pipe diameter
90 mm
110 mm
140 mm
Cold water pipe diameter
DN40
DN40
DN40
Height
1440mm
1600mm
1680mm
Width
1450mm
1630mm
1630mm
Depth
1780mm
1950mm
2020mm
Net weight
1400kg
2500kg
2800kg
Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment 0

Main Features

1, Compact design for space saving
2, Heavy duty hard mount structure
3, Frequency inverter drive up to 300G
4, Programmable computer control up to 6 wash programs
5, Programmable water levels and water temperature
6, Patented safety door interlock system
7, Stainless steel door with large sight glass
8, Stainless steel basket, outer shell, front and top panels
9, All electromagnetic operated valves eliminate need of compressed air
10, Three flushable compartment dry supply injectors
11, Standard hot and cold water inlets
12, Direct steam injection heating OR electrical heating

Certifications
Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment 2
Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment 4
Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment 6
Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment 8
Our Service
Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment 10

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment 12

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Large Door Fully Automatic Washer Stripper Low Maintenance 10-Year Lifespan Washing Equipment 14
Packaging
Size
1780 (L) * 1730 (W) * 2120 (H) mm
Weight
3300kg



Packaging Details
Syntheic board
Wood pallet
